150W Air Module

from $229.00

Ultra light-weight high power LED module

LED Type:
Quantity:
Add To Cart

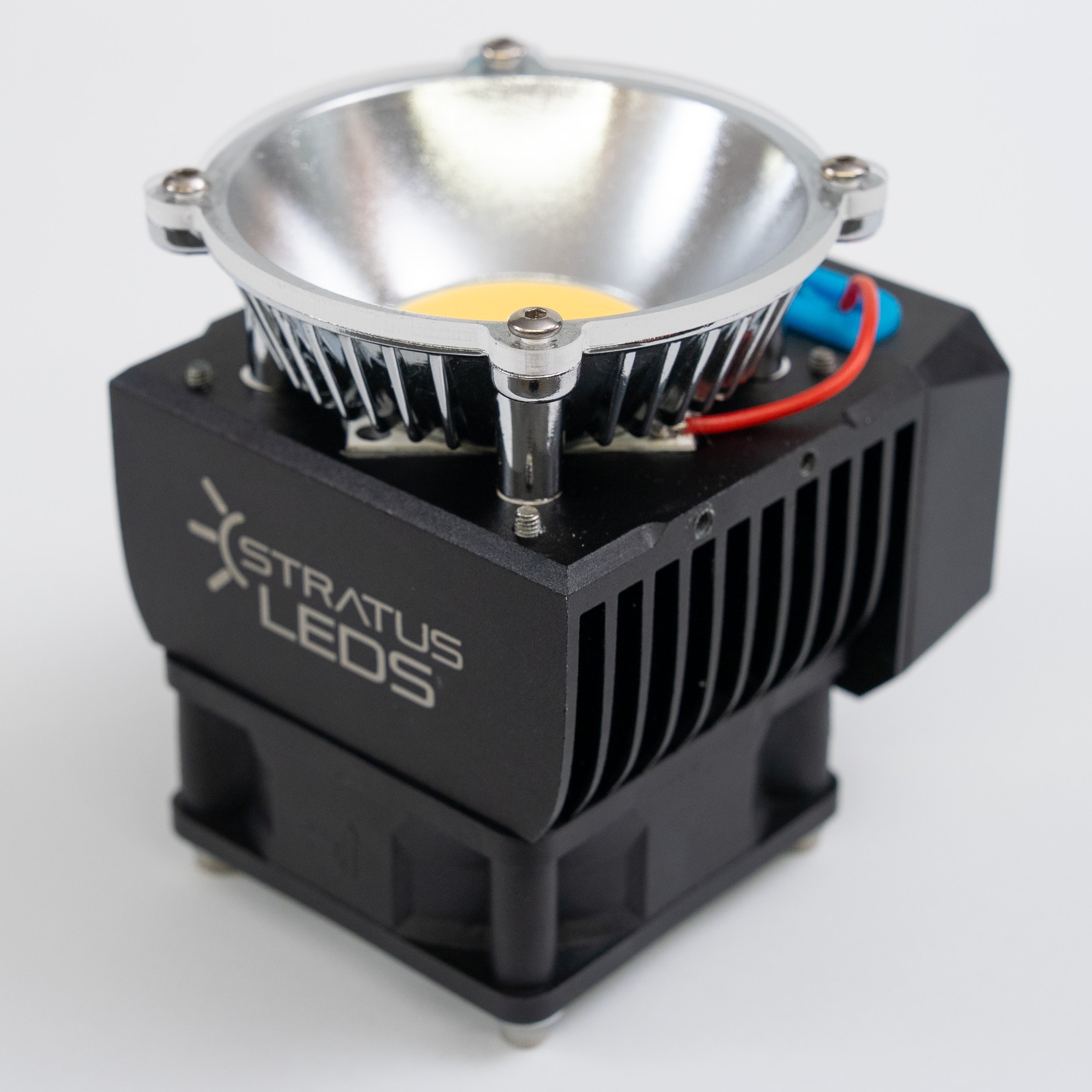

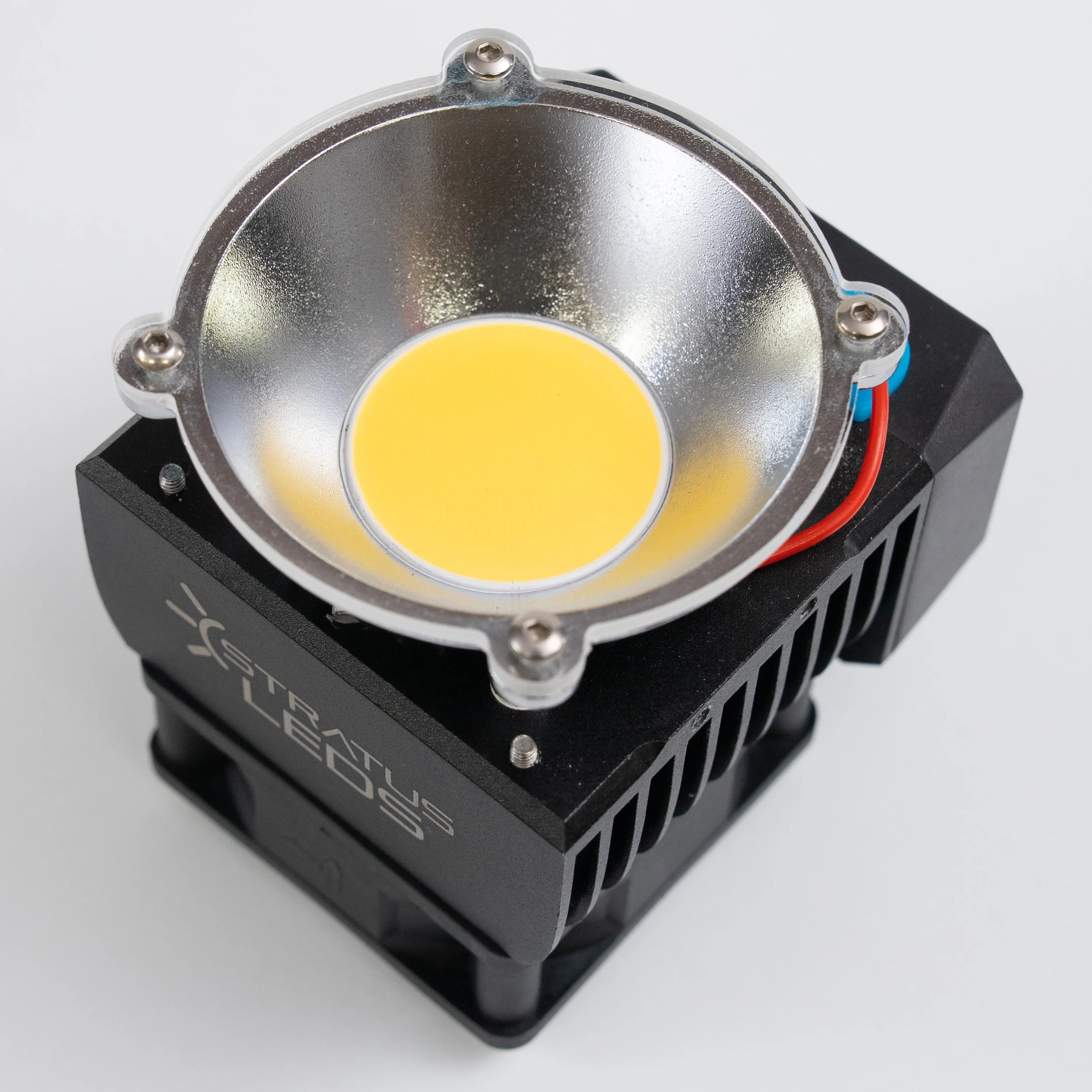

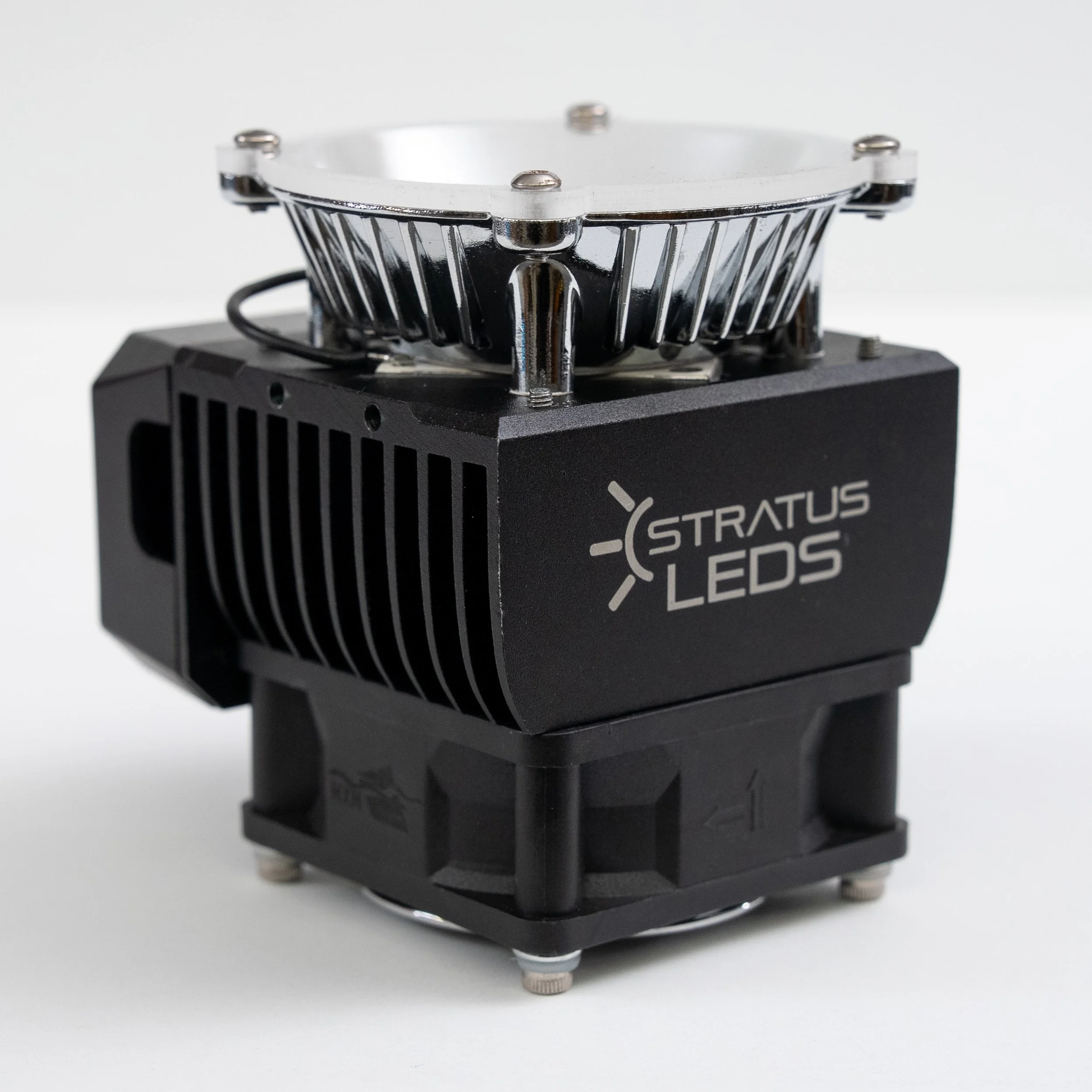

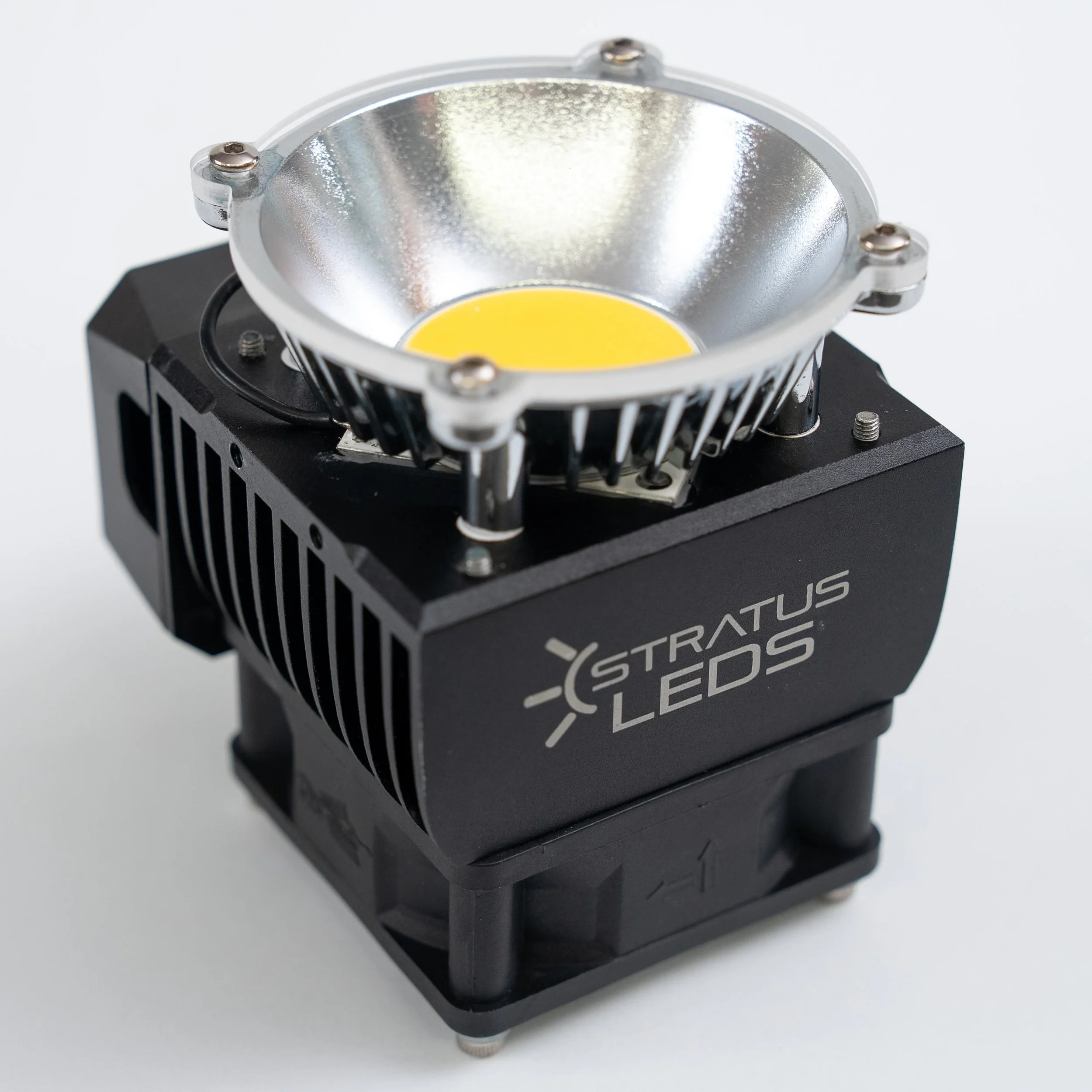

The 150W Air Module is the most compact and lightweight high power LED on the market. Simply plug in a battery or power supply to blast out 24,750 lumens of light. The integrated Lumiboost drives the LED with a flicker-free, actively controlled current source. It can read multiple types of dimming control signals including DMX-512, R/C servo PWM, Art-Net, and analog voltage. We source high quality LED diodes for accurate color rendition and maximum efficiency. Our LED Modules can be used alone, or daisy-chained together in a light bar array

The Air Module is optimized to be as light weight as possible for use on drones. This is achieved by coupling a relatively small aluminum heat sink with a high power fan. Most high power LED systems use heavy heat sinks weighing over 1kg. Our efficient cooling system keeps temperatures cool while weighing a mere 490g.

FEATURES:

  • Each Air Module is comparable in brightness to a 2000W Tungsten light

  • Includes low voltage protection for 3-6S Lithium batteries

  • Dimming control via DMX-512, R/C servo PWM, and analog voltage signal

  • On/off switching can be controlled with 5V I/O signal

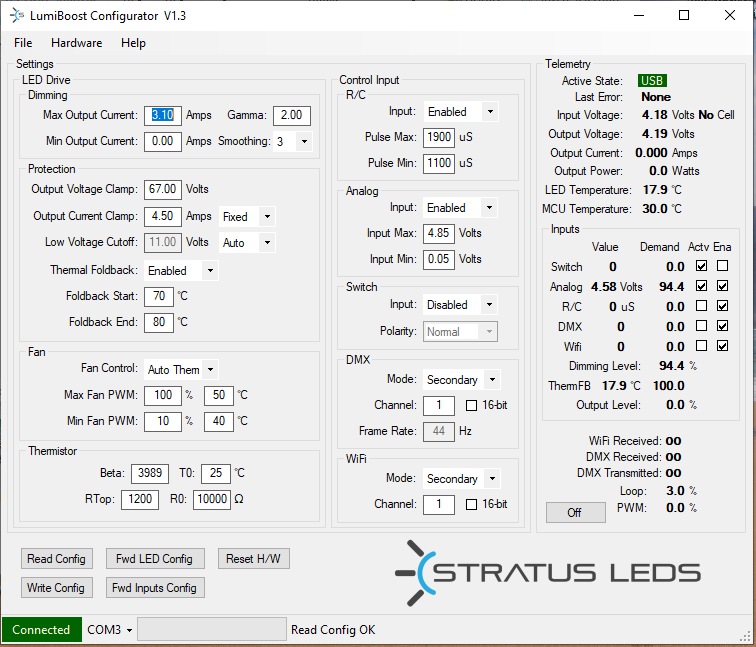

  • Settings and live telemetry data available via micro USB (more info)

SPECIFICATIONS:

  • Input: 11-27V DC

  • Color Temperature: 5500K

  • Power connector: XT30

  • Noise: 30db-A fan

  • Flicker free with high speed cameras! Output heavily filtered by inductor

  • Weight: 490g

  • Dimensions: 160*140*130mm (with parabolic reflector)

WHAT’S INCLUDED:

  • 150W Air Module (Lumiboost, COB, heat sink, fan, pre assembled)

  • R/C servo signal PWM wire

  • Control daisy chaining wire (JST GH-3p to GH-3p)
